Linear Feeders
Linear feeders convey oriented components from bowl feeders over short or relatively long distances, thereby creating a buffer storage. They enable a consistent flow of orientated components from the bowl feeder to escapement devices creating product accumulation prior to a machine or handling unit.
Linear feeders from TC Automation enable a linear sorting (linear sorting track). They can also be used for the orientation of components and provide higher outputs with a mulit-track design. In addition to horizontal conveying of components, linear feeders can be used to handle irregular supplies of parts from upstream equipment, creating a buffer store and smooth flow for further processes.
Sizes can be up to 2 metres long and are available to suit every possible application. TC linear feeders share bowl feeder drive units multi magnet design, are robust, compact and virtually maintenance free.
Descriptions
Descriptions
Outline

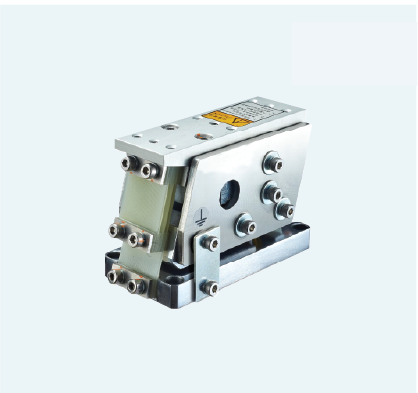

NTL-200/300/500 are models of linear vibration units designed for small or medium-sized parts feeding, featured in stable feeding capacity, flexible amplitude and frequency, moderate loaded weight, as well as integrated applications of controllable parameters, which can be applicable in multi-working conditions.
Features
- Smoothly precisely controlled feeding speed and stability achievable with frequency modulation controllers;
- Particularly suitable for the orientating, sorting and feeding of small or medium-sized parts;
- Selected materials, comprehensive testing with high safety and good stability;
- 3 lines of screw holes on the top to facilitate the position adjustment of linear tracks.
Specifications
| Model | Drive Mode | Vibrator Mass(kg) | Input Voltage(V) | Rated Currency(A) | Vibration Frequency(Hz) | Max.Bowl Diameter(mm) | Max Loaded Weight(kg) | Compatible Controller |
| NTL-200 | EM | 1.5 | 0~200 | 1.5 | 60~200 | 200 | 0.8 | SDVC31-S |
| NTL-300 | EM | 4 | 0~220 | 1.5 | 60~200 | 300 | 1 | SDVC31-S |
| NTL-500 | EM | 10 | 0~220 | 1.5 | 60~200 | 500 | 2 | SDVC31-S |

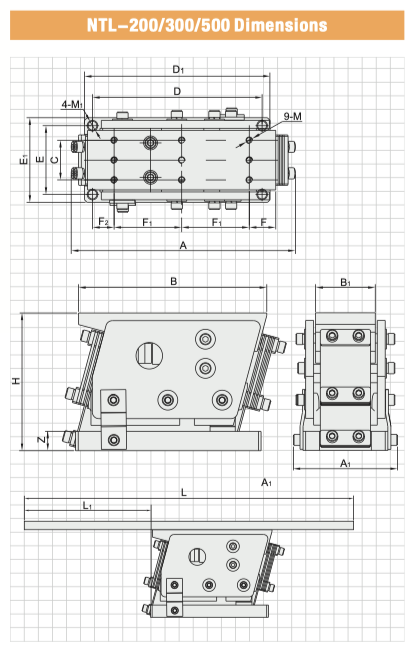

Dimensions
| Model | A | A1 | B | B1 | C | D | D1 | M | M1 | E | E1 | F | F1 | F2 | Z | H | L(Max) | L1(Max) |
| NTL-200 | 124 | 69 | 100 | 33 | 22 | 106 | 120 | 4 | 8 | 41 | 55 | 10 | 40 | 14.6 | 12 | 72.5 | 200 | 80 |
| NTL-300 | 169 | 81 | 142 | 45 | 30 | 128 | 140 | 5 | 8 | 52 | 64 | 20 | 51 | 16.3 | 14.5 | 104 | 300 | 100 |
| NTL-500 | 232 | 108 | 194 | 62 | 42 | 176 | 192 | 6 | 8 | 70 | 88 | 25 | 72 | 19 | 22 | 142 | 500 | 200 |
